Project 3 Drawing

Double House Garden Drawing

Floor plan of the houses and garden

Site plan of the houses

Sectional drawing and perspective of the garden

The precedent study of the house is Villa Savoye by Le Corbusier. The idea that was taken from the Villa is the isolation and white box. These idea is then modified into a new concept, that is to create a house from a box and cut the middle part in irregular shape with the garden surrounded by the building. These irregular shape in the middle allow public to access it so they can go through to the isolated garden on the back of the house. The gallery also located in the basement with access from the side of the garden. From the front of the house, people could see a little view of the garden through the gap of the irregular wall of both houses. At the back, there are also public space where people could relax and sit around. The private part of the house mostly located at the front, as going through the back, it feels more public. The storage and the office is located under the garden. The storage is adjacent to both large and small gallery to allow artwork to be moved around easily.

Project 3 Model

Double House Garden

1:100 Model

Aerial front view of the building

View from the street

Aerial back view

Back view of the building

View into the inside of the house

Basement plan view

Ground floor plan view

1st floor plan view

The model shows the plan of the house in 3D and the wall element in each houses. Within each house, the rooms are located similarly and one house are like a mirror version of the other house. The main focus of the house is the complex geometry at the center and the shape of the space inside the house. The path in the center make people experience as they walk through between the house. At the back of the site, there are path to the upper public space and to lower gallery. From the back, people could see some of the interior of both house which is the dining area. These dining area, at some extent, could become a small gallery.

Sectional Model 1:50

Overall view of the sectional model

Side sectional view of the house

Interior view of the house

Interior view of the gallery and storage room

In this sectional model, the condition of the house could be visualize. The interior space could be seen with some furniture on the house. Bedroom and bathroom for the inhabitant located on the 1st floor. The sectional model shows the relationship between the houses. It is again similar with the other house.

The Proposition

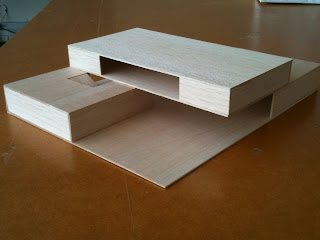

Perspective view of the proposition model

Side view of the model

View from above

View of the two level of the model

The proposition is focused on the roof garden like Villa Savoye and try to separate the space for public and private. The ground floor has two semi private space separate from each other and has ramp each. The roof of the ground floor will be a garden and the box in the middle of 1st floor will be a private space.

Formal Device Aspect

Model of Formal Device Aspect

Model focusing on exterior wall

Model from the front

Side view of the model

Plan view of the model

Drawing of Formal Device Aspect

2nd Level Diagram of Exterior Wall

The thin wall on the front used for wind break and has a little opening that allow people to see the landscape when they reach the 2nd floor from the ramp.

1st level Diagram of the Exterior Wall

The diagram show that the exterior wall of the villa is clean and crisp without any line, but the interior has many gaps. It is for the interior wall and the column to intersect with the exterior. The opening of the 4 side allow people to see the landscape, and these opening has same proportion each opposite.

Ground Level Diagram of the Exterior Wall

The diagram show the form of the ground level has curve shape for car to turn around with basis of 'machine for living'. The proportion and the length of the thin and thick is almost the same.

Structure Aspect

Model of Structure Aspect

Model of structure

Front view of Model

Side view of Model

Model view from top

Drawing of Structure Aspect

Column diagram (light brown)

The drawing show the column that support 2 level and have particular grid

Column Diagram (Blue)
The column that support 2 level but have no particular grid

Column Diagram (Green)
The column only support 1 level and have no grid

Color Aspect

Model of Color Aspect

Model of Color

Front view of the model

Right view of the model

Left view of the model

Back view of the model

Color Drawing

The study is focused on the color used in the villa. There are two main color that Le Corbusier developed at that time. For the interior, the light pink and light blue was used to bring the relaxing atmosphere and comfortable feeling. The darker color is for the accent inside the villa. For the exterior, the white represent modernism at that time and the green use to blend with the landscape.

Exterior Color

Color of the exteriorImage of exterior

Final Drawing with Color

Interior Color

Color of the interior

Perspective of the interiorFinal Drawing of interior

Color of the interior
Perspective of the interior

Final Drawing of interior

Project 1 - Model

Image of Villa Savoye 1:50 Model

Front view

Right view

Left view

Back view

Image of Section

Section cut through the ramp

Interior Image

Stairs from ground to 1st then 2nd floor

Interior view of 1st floor

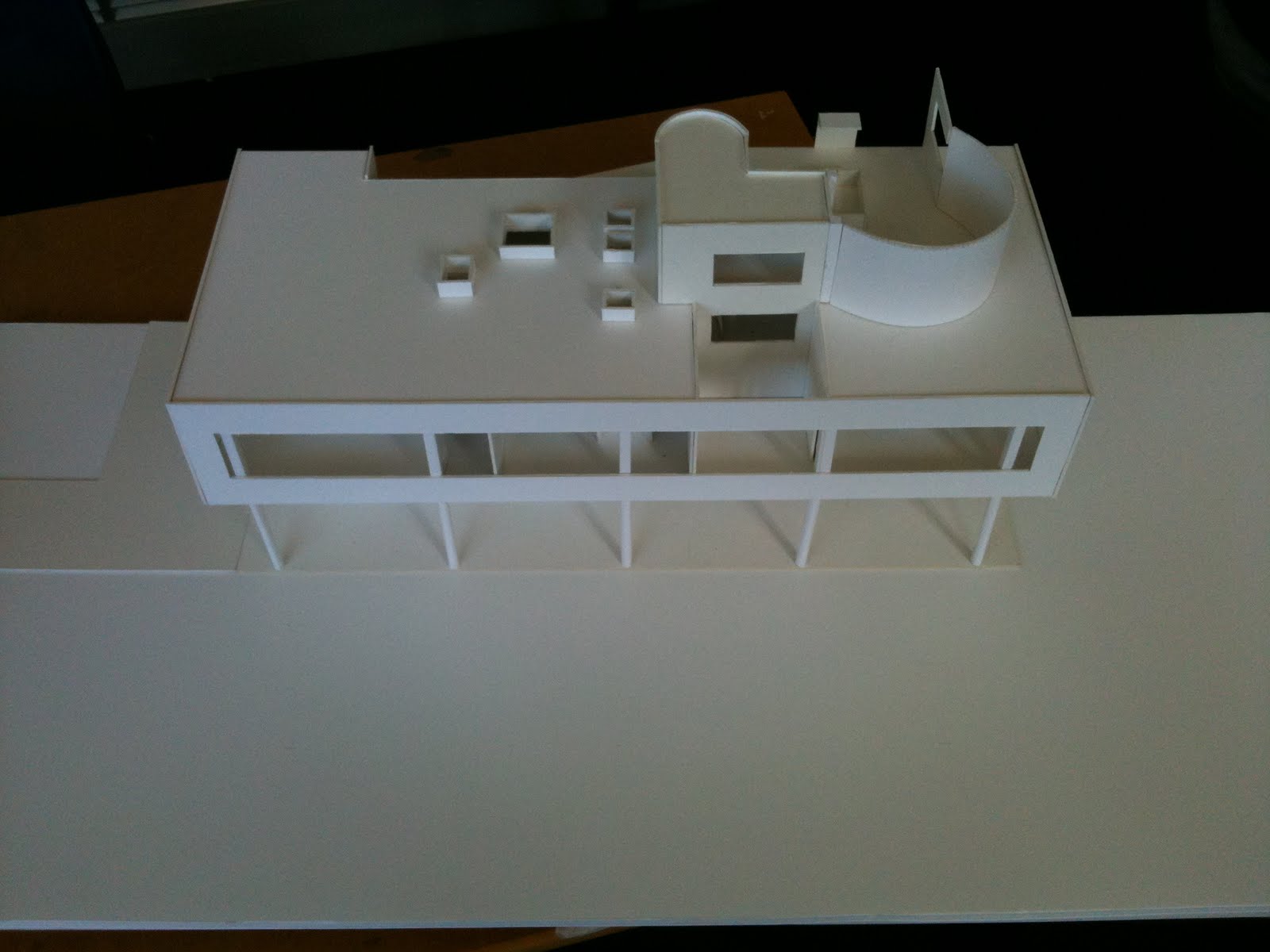

Image of Aerial view

Villa Savoye
